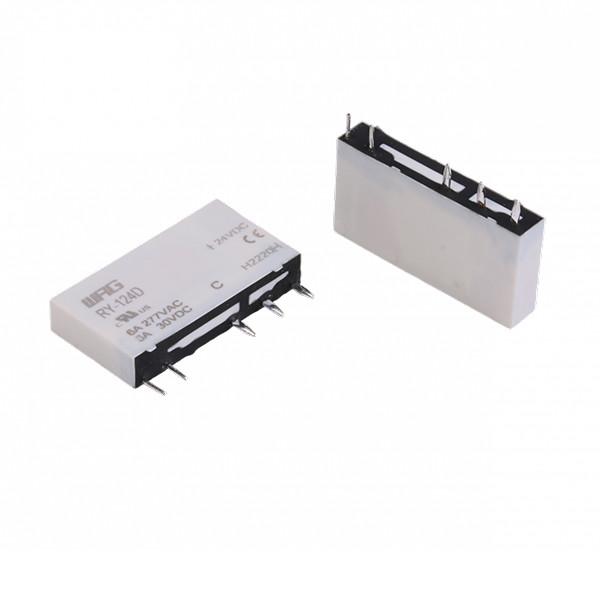

24V 6A Ultra Thin SPDT Power Relay High Dielectric Withstand 4KV For Hair Dryer

Product Categories
Shenzhen Ketai Electronic Technology Co., Ltd.
Contact Now

24V 6A Ultra Thin SPDT Power Relay High Dielectric Withstand 4KV For Hair Dryer

Brand Name : WRG

Model Number : RY-124D

Certification : UL:E345228

Place of Origin : China

MOQ : 100pcs

Price : negotiable

Payment Terms : T/T, Western Union, L/C, MoneyGram

Supply Ability : 500k per month

Delivery Time : 5-8days

Packaging Details : standard or customization

Keyword : SPDT Power Relay

Coil input voltage : 24VDC

Contact material : Ag alloy

Coil power : 170mW

Contact rating : 6A 277VAC,3A 30VDC

Mounting : PCB

Features : rated current 6A

Contact Now

24V 6A Ultra Thin SPDT Power Relay High Dielectric Withstand 4KV For Hair Dryer


SPDT Power Relay Description:
RSC series power relay that pretty suitable for small current, low consumption, and environmental-friendly electrical products or small home

appliances.3V,5V,6V,9V,12V,24V input to chose,0.2W or 0.36w for coil power,rated current 3A,3g for weight,size with 15.5*10.6*12mm.

SPDT Power Relay Features:
1. ultra-thin,6mm width only, saving space.
2. rated current 6A.
3. 1 Form C,SPDT,5pins.

4. high dielectric withstands voltage 4KV.

5. IP67 protection grade.

6. base match with it carry LED and protection circuit.

SPDT Power Relay Applications:
household appliances: such as induction cooker, electric toaster, electric heater...

SPDT Power Relay Specification:

Coil data

Coil input voltage

12/24/48/60VDC

Coil power

900mW

Response voltage

＞75％(Room temp.)

Drog out voltage

＜5％(Room temp.)

Operating time / Release time

Less than 20ms/Less than 10ms

For further datasheets, please click the link below or contact us.
RY-124D (2).pdf
24V 6A Ultra Thin SPDT Power Relay High Dielectric Withstand 4KV For Hair Dryer

24V 6A Ultra Thin SPDT Power Relay High Dielectric Withstand 4KV For Hair Dryer
