WRG Lightweight PCB Relay With Quick Insert Terminal High Electrical Life

Product Categories
Shenzhen Ketai Electronic Technology Co., Ltd.
Contact Now

WRG Lightweight PCB Relay With Quick Insert Terminal High Electrical Life

Brand Name : WRG

Model Number : RF-SS-112DMF

Certification : UL/TUV/CQC/VDE

Place of Origin : China

MOQ : 100pcs

Price : negotiable

Payment Terms : Western Union, T/T, Western Union, MoneyGram, L/C

Supply Ability : 500k per month

Delivery Time : 5-8days

Packaging Details : standard or customization

Keyword : 20A Power Relay

Coil input voltage : DC12V

Contact material : Ag alloy

Contact rating : 20A 250VAC,2HP 240VAC,20A 277VAC,1-1/2HP 277VAC

Mounting : pcb and fast-plug terminal

Dimension LxWxH(mm) : 30.1x15.7x23.3

Application : household appliances

Weight : 22g

Contact Now

WRG Lightweight PCB Relay With Quick Insert Terminal High Electrical Life

WRG Relay Lightweight PCB Relay With Quick Insert Terminal And High Electrical Life


WRG Relay Description:
Our Lightweight PCB Relay, weighing just 22g, is the perfect balance of lightweight design and high functionality. Despite its compact size, it offers a quick insert terminal feature that facilitates easy and efficient installation. This relay provides a high electrical lifespan with a rating of 1x10^5 operations under AC 1 conditions, ensuring long-lasting performance. With an optimal balance between weight, installation ease, and durability, this relay is an ideal choice for applications where space and weight are critical considerations.


WRG Relay Features:
1. reliable and durable
2. class A for insulation
3. IEC60079-15 anti-explosion standard is available as to option
4. fast plug terminal 250 and PCB mounting
5. 4.5kv dielectric withstand voltage between coil and contact

WRG Relay Specification:

Insulation Resistance 1000MΩ
Dielectric Strength(Between coil&contact) 2500VAC
Operate Time (Max.) 15ms
Release Time (Max.) 10ms
Ambient Temperature -40℃ ~ 85℃/105℃
Terminal Type THT & QT

WRG Lightweight PCB Relay With Quick Insert Terminal High Electrical Life


Product Tags:

WRG Lightweight PCB Relay



Quick Insert Terminal PCB Relay



Lightweight Circuit Board Relays


China WRG Lightweight PCB Relay With Quick Insert Terminal High Electrical Life factory

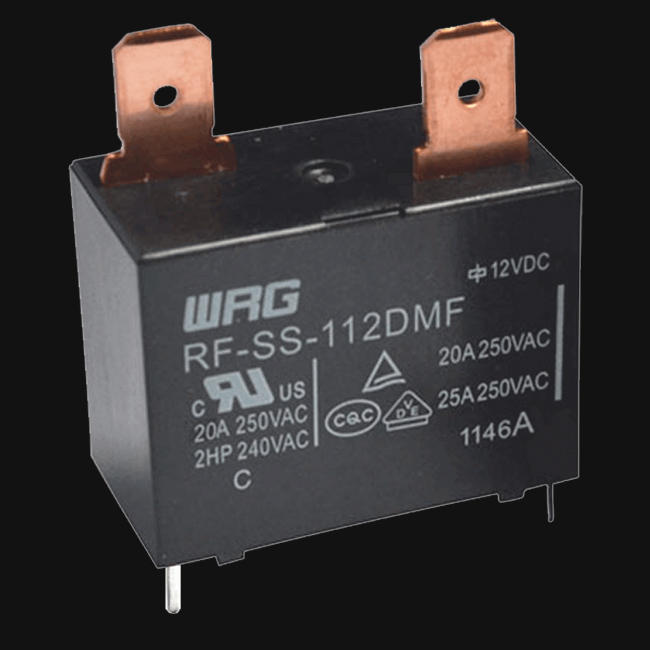

WRG Lightweight PCB Relay With Quick Insert Terminal High Electrical Life Images
