SPST 10A 12 Volt Class A Insulation RJE - 112DM PCB Mount Relay

Brand Name : WRG

Model Number : RJE-112DM

Certification : TUV/CQC/UL/VDE

Place of Origin : China

MOQ : 100pcs

Price : negotiable

Payment Terms : T/T, Western Union, L/C, MoneyGram

Supply Ability : 500k per month

Delivery Time : 5-8days

Packaging Details : standard or customization

Keyword : PCB Mount Relay

Coil input voltage : 12VDC

Coil power : D type:400mW

Applications : PLC controller

Contact material : Ag alloy

Contact form : 1 Form A

Contact rating : 10A 125VAC,5A 277VAC,10A 30VDC

Certifications : cULus:E345228/TUV:R50246903/CQC:CQC12002084196/VDE:40045973

Contact Now

SPST 10A 12 Volt Class A Insulation RJE-112DM PCB Mount Relay

PCB Mount Relay Description:

RJE series power relays are the ones with small in size and lightweight, with small currents of 3A to 5A, not only 4KV dielectric withstand voltage,

but also meet with IEC60079-15 anti-explosion standard, safety system CQC/TUV/UL/VDE was approved as well.

PCB Mount Relay Features:

1. SPST,1 Form A

2. rated current 10A

3. 4KV dielectric withstand voltage between coil and contact

PCB Mount Relay FAQ:
Q: Why is WRG relay?
WRG relay was established in 2000, focusing on R&D, manufacturing, and sale of relays all the time. It has UL/VDE/TUV/CQC certifications and matches with RoHs demand. Products were chosen by Midea, Panasonic, Haier, META, etc. It is a stable and reliable supply for you.

Q: How is the after-sales service?
If have any problems, please feel free to contact us by social App, phone call, or e-mail, we would like to solve them and do better for you.

PCB Mount Relay Specification:

Contact data:
Contact Configuration					1 Form A
Contact material					Ag alloy
Max. switching voltage					30VDC,277VAC
Max. switching power					2,770VA
Contact ratings					5A 250VAC,1/3HP 240VAC,5A 277VAC,1/6HP 277VAC
Contact resistance					Max. 100mΩ(1A/6VDC)
Mechanical endurance					1x107 times
Electrical endurance AC1					1x105 times

SPST 10A 12 Volt Class A Insulation RJE - 112DM PCB Mount Relay

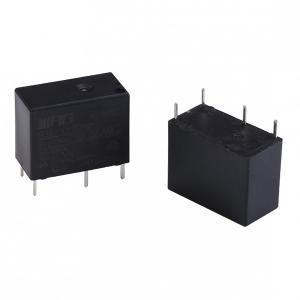

SPST 10A 12 Volt Class A Insulation RJE - 112DM PCB Mount Relay Images
