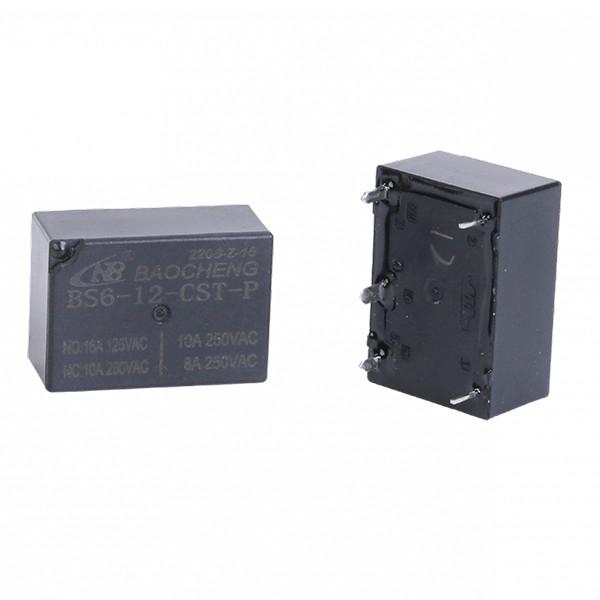

Flat Type 12v 50 Amp Relay High Sensitivity BS6-12-CST-P Environmental Protection

Brand Name : NBC

Model Number : BS6-12-CST-P

Certification : TUV/CQC/UL

Place of Origin : China

MOQ : 100pcs

Price : negotiable

Payment Terms : Western Union, T/T, L/C

Delivery Time : 5-8days

Packaging Details : standard or customization

Key words : 12V 50A Relay

Product Name : BS6-12-CST-P

Contact Number : 1 Form A

Contact Material : AgCdO, AgSnO2

Switching Current Max. : 16A

Application : EV Charging Equipment

Features : Dust-tight type

Weight : Approx 10.0g

Contact Now

Flat Type High 12V 50A Relay Sensitivity BS6-12-CST-P Environmental Protection

12V 50A Relay Introduce:

The relay is an electric control device, which is an electrical appliance that causes the controlled quantity to undergo a predetermined step change in the electrical output circuit when the change of the input quantity (excitation quantity) meets the specified requirements. It has an interactive relationship between the control system (also known as the input loop) and the controlled system (also known as the output loop). Usually used in automatic control circuits, it is actually an "automatic switch" that uses a small current to control the operation of a large current. Therefore, it plays the role of automatic adjustment, safety protection, and conversion circuit in the circuit.

12V 50A Relay Features:

1. Heavy Load: NO:16A, NC:10A
2. High Sensitivity:200mW 450mW
3. Fit for PCB
4. Complies with RoHS Directive
5. Flat type
6. Flux-tight&Sealed type available
7. Dimensions: 23.0*16.2*10.4 mm
8. It Can replace Hongfa’s similar relay with model No. HF7520

12V 50A Relay Parameter:

Contact Rating
Contact Form	1C
Contact Material	AgCdO, AgSnO2
Contact Load Capacity	NO:16A/125VAC, 10A/250VAC
	NC:10A/250VAC,8A/250VAC
Switching Power Max.	480W 4000VA
Switching Voltage Max.	30VDC/250VAC
Switching Current Max.	16A
Contact Resistance Max.	100mΩ(1A 24VDC)
Life expectancy	Electrical	5x10^4
	Mechanical	10^7
